When it comes to energy-efficient windows, most people focus on the type of glass or the number of panes. However, one often overlooked but critically important component is the spacer—specifically, the warm edge spacer.
This article explores what a warm edge spacer is, how it differs from conventional aluminum spacers, and why it plays a crucial role in thermal insulation, condensation prevention, and overall comfort in your home or office.

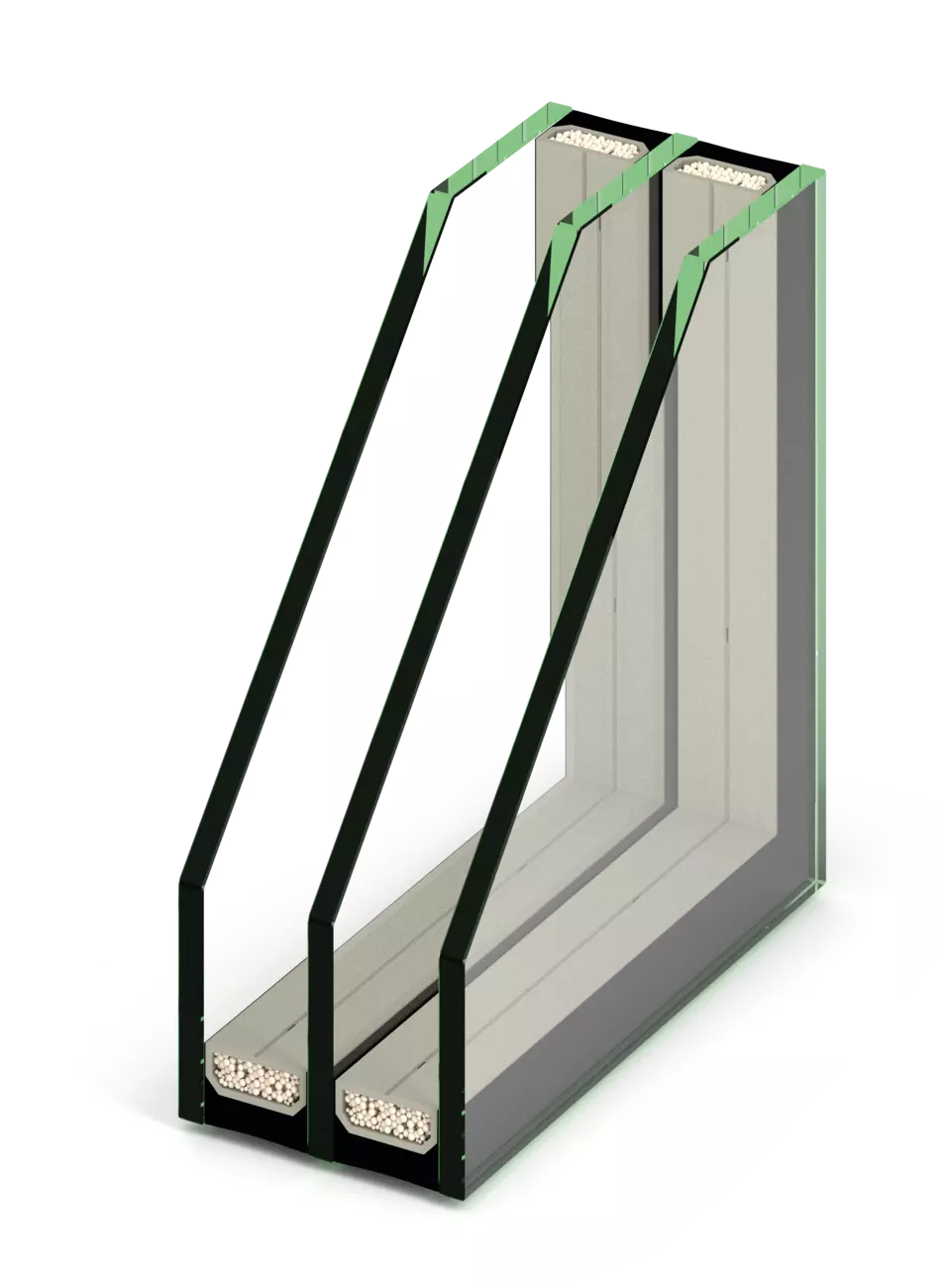

WHAT IS A SPACER BAR IN AN INSULATED GLASS UNIT (IGU)?
A spacer bar is a structural component placed between the glass panes of a double- or triple-glazed window. Its primary function is to keep the panes properly separated, forming a sealed cavity that can be filled with air or inert gases like argon or krypton. These gases improve insulation by reducing thermal conductivity.
Traditional spacers are made of aluminum—a durable and easily manufactured material. However, aluminum is highly thermally conductive, which means it easily transfers cold or heat through the edge of the glass unit. This can create a thermal “bridge” or cold edge that leads to:
– Energy loss
– Cold spots near the window
– Condensation
– Mold growth
WHAT IS A WARM EDGE SPACER?
A warm edge spacer is an advanced type of spacer made from low-conductivity materials such as thermoplastics, stainless steel, foam, or composite materials. It is designed to reduce thermal bridging at the edge of the glass unit, improving the overall energy efficiency and durability of the window.
Unlike aluminum spacers that may conduct up to 160 W/m²·K, modern warm edge spacers can have thermal conductivity values as low as 0.16 W/m²·K—a dramatic improvement.

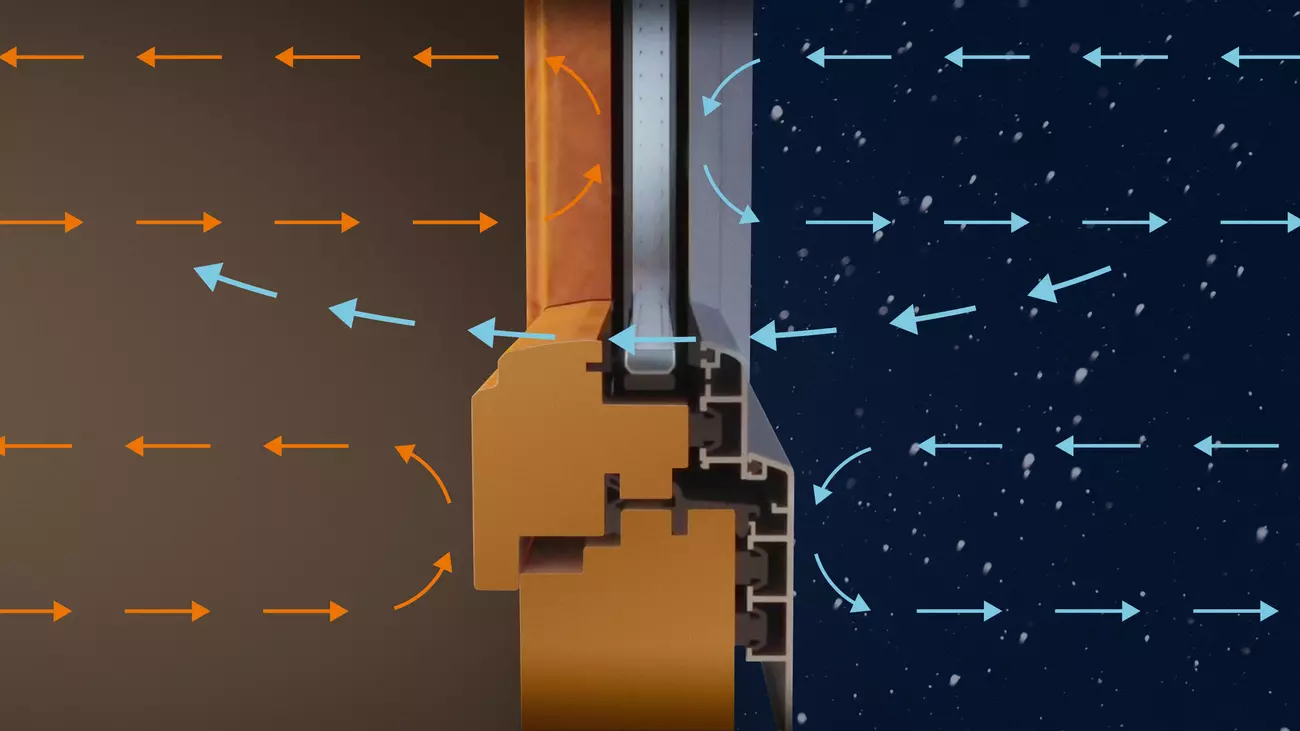

(conventional spacer)

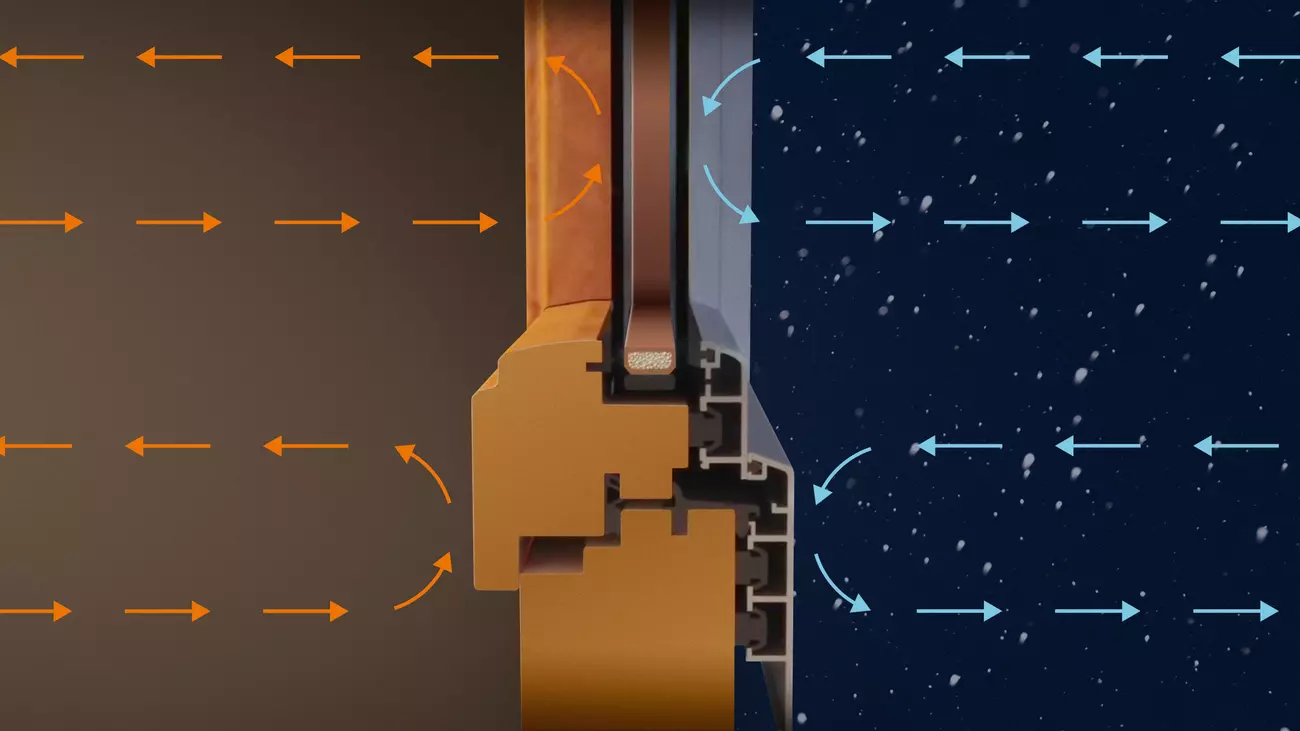

(warm edge spacer)
WARM EDGE VS CONVENTIONAL SPACER: KEY DIFFERENCES
| Feature | Aluminum Spacer | Warm Edge Spacer |
|---|---|---|
| Material | Aluminum | Plastic, foam, or composites |
| Thermal Conductivity | Very high (~160 W/m²·K) | Very low (~0.16–0.3 W/m²·K) |
| Risk of Condensation | High | Very low |
| Energy Efficiency | Poor | Excellent |
| Durability | Moderate | High (especially hybrid types) |
| Comfort Level | Cold near glass edges | Consistent temperature |
| Design Flexibility | Limited colors | Many finishes and color options |
HOW DOES A WARM EDGE SPACER IMPROVE THERMAL PERFORMANCE?
By minimizing heat transfer at the edge of the glass, a warm edge spacer helps maintain a higher internal surface temperature, which reduces the likelihood of condensation and increases comfort in colder seasons.
For example:
– The internal glass edge temperature can improve by up to 65% compared to aluminum spacers.
– The overall U-value (thermal transmittance) of the window can improve by 5–18%, depending on the configuration.
– It helps meet ENERGY STAR and Passive House standards

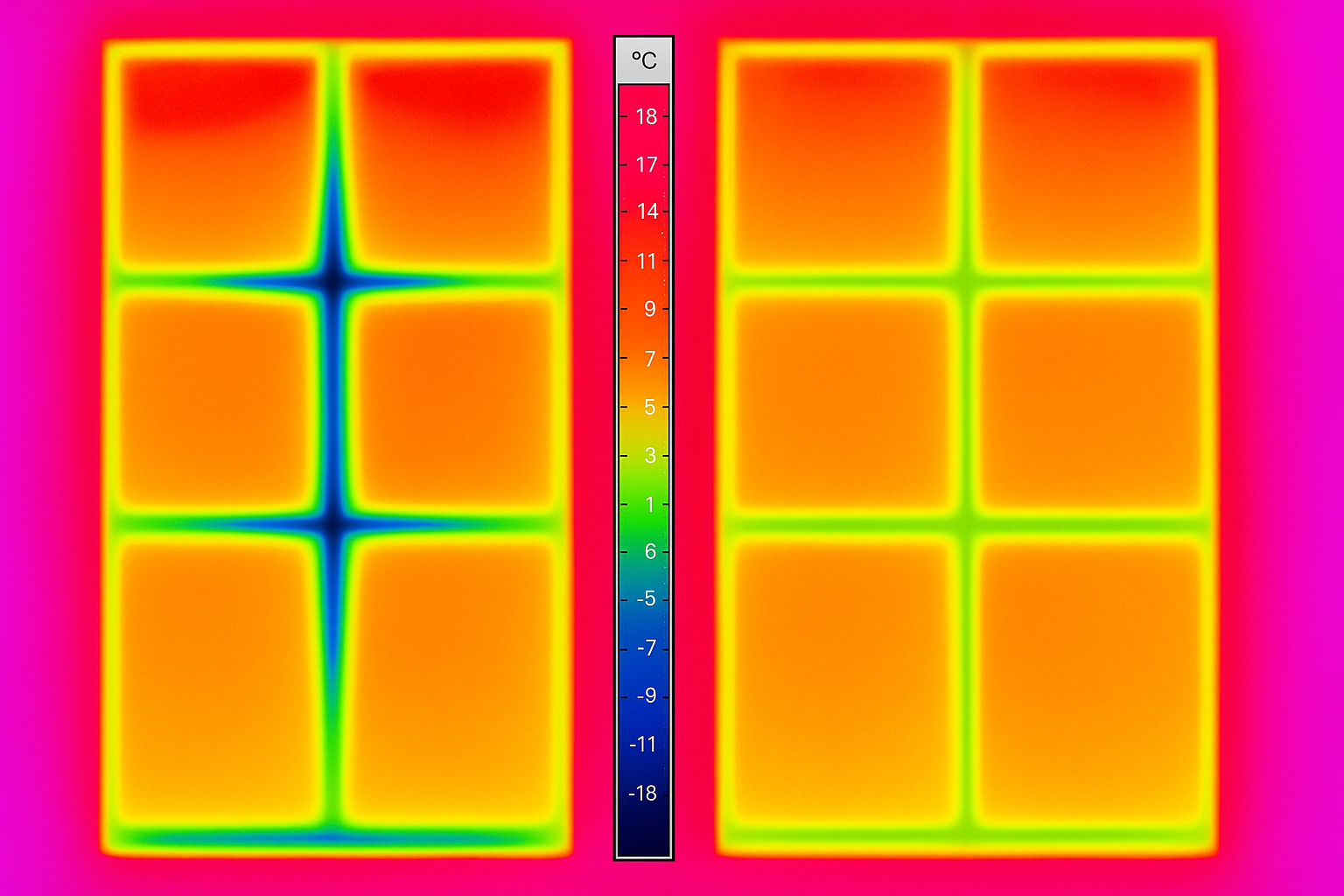

(thermal insulation comparison: conventional spacer vs warm edge spacer)
WHY CONDENSATION FORMS — AND HOW WARM EDGE HELPS
Condensation happens when warm, moist indoor air hits a cold surface like a window edge. If the edge is colder than the dew point, moisture in the air turns into water droplets.
A warm edge spacer raises the temperature at the glass edge, often enough to prevent condensation altogether. This protects your interior from water damage, mold growth, and unsightly staining on window sills or frames.
WHERE SHOULD YOU USE WARM EDGE SPACERS?
Warm edge technology is ideal for virtually any type of glazing system:
– Residential windows and patio doors
– Commercial curtain walls and façades
– Skylights and roof windows
– Passive house and net-zero buildings
– Cold climates (Canada, Northern U.S., Northern Europe)
In fact, in areas like Ontario, where winter temperatures often fall below -15°C, using warm edge spacers is becoming a new standard.
TYPES OF WARM EDGE SPACER TECHNOLOGIES
There are several types of warm edge spacers, including:
Foam-based (e.g., Super Spacer®)
– Flexible and low conductivity
– Excellent for triple glazing
– Can absorb some stress due to expansion/contraction
Stainless Steel (e.g., Thermix®)
– Better strength than foam
– Lower conductivity than aluminum
– Often used in high-performance IGUs
Hybrid/Composite (e.g., SWISSPACER®, TGI-Spacer)
– Combines plastic and metal
– Ideal balance between rigidity and thermal performance
– Available in many colors and finishes
DESIGN AND AESTHETICS
Warm edge spacers are not just about performance—they can be aesthetic elements as well. Available in black, grey, brown, bronze, and even metallic finishes, they complement modern interior and exterior window designs. Matching the spacer to frame colors enhances the window’s visual appeal.
DO WARM EDGE SPACERS AFFECT DURABILITY?
Yes—in a positive way. Because warm edge spacers reduce the stress caused by temperature variations (expansion and contraction), they also help:
– Maintain seal integrity
– Extend lifetime of the IGU
– Reduce fogging or seal failures over time
In short, a warm edge spacer contributes to long-term performance and stability of your windows.
ADDED VALUE FOR HOMEOWNERS AND BUILDERS
While warm edge spacers may add slightly higher upfront cost, they pay off in several ways:
– Lower energy bills due to better insulation
– Increased indoor comfort
– Better air quality with reduced mold risk
– Higher resale value due to upgraded window technology
– Sustainability benefits and eligibility for green certifications
If you’re involved in home renovation, new construction, or commercial development, specifying warm edge spacers in your window package is a smart move.
CONCLUSION: SMALL DETAIL, BIG IMPACT
The warm edge spacer might seem like a small detail hidden inside your window, but it plays a huge role in performance, comfort, and durability. It is one of the most cost-effective ways to improve energy efficiency and future-proof your glazing investment.
At Prime Portal Inc., we supply European-made windows with high-performance warm edge technology to meet Canadian building standards. If you’re planning a project that demands thermal performance and modern design — get in touch and discover the benefits of warm edge glazing.
